high voltage busbar insulator bushing 12kv 10KV insulation fitting

Name: high voltage busbar insulator bushing 12kv 10KV insulation fitting
Brand: DOWE
Price: 1 USD

Buy cheap high voltage busbar insulator bushing 12kv 10KV insulation fitting product

Place of Origin : China

Brand Name : DOWE

Certification : CE ROHS UL

Model Number : TG2-10Q/182

MOQ : any could

Price : depand on the exchang rate and quantity

Packaging Details : CARTON

Delivery Time : 7DAYS

Payment Terms : T/T,L/C,western union

Supply Ability : 20000PCS/30DAYS

Contact Now

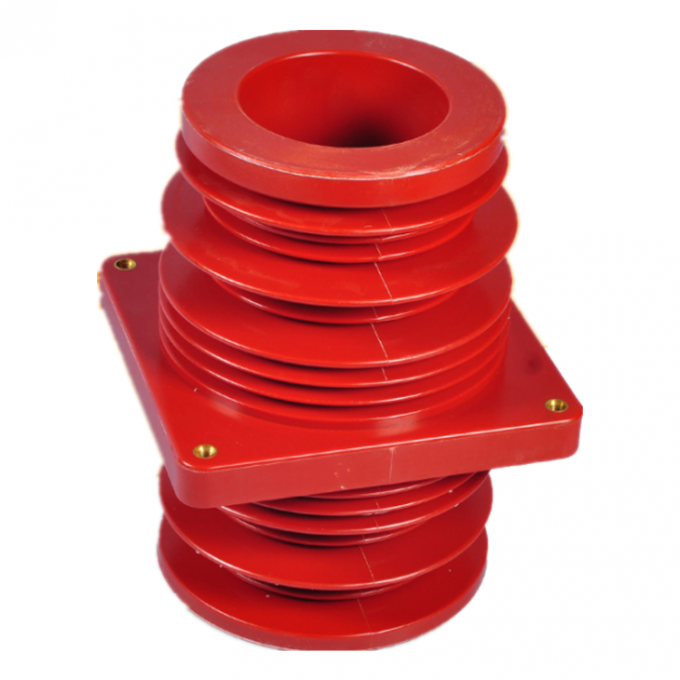

TG1-10Q/182 H.V.wall busbar bushing

high voltage busbar insulator bushing 12kv 10KV insulation fitting

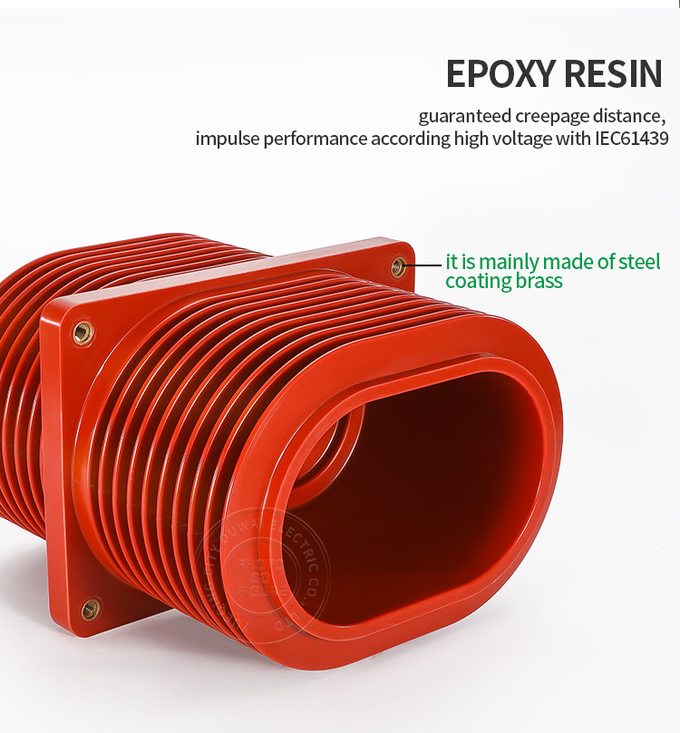

Material:expoy resin

CE certificate,Rohs certifiacate,UL

We are specialize in electric insulator for more than 7 years

Best quality

Colour:OEM

Screw:M12

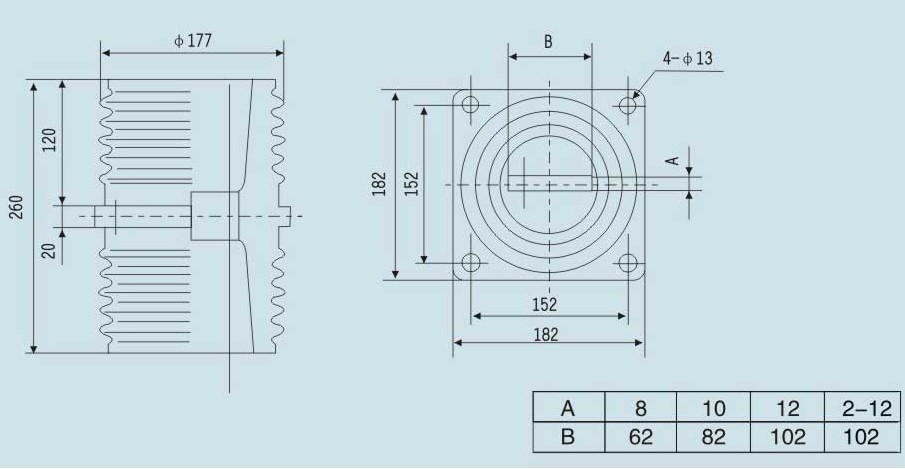

Heigh: 260mm

Packing: carton

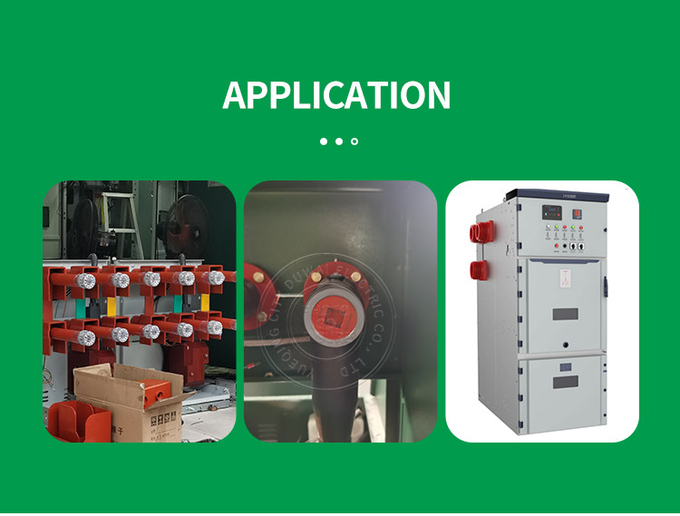

Applicable to all shopping malls, supermarkets, national grids, substations, power energy, urban power and other fields.

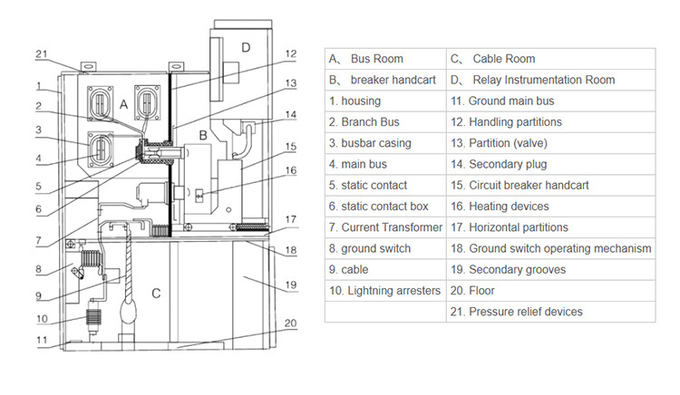

Mainly used in switch cabinets, power stations, outdoor high voltage, switchgear,etc.

high voltage busbar insulator bushing 12kv 10KV insulation fitting

Name	Model	Voltage	Install data(mm)	Height(mm)	Brand
Epoxy resin bushing	TG1-10Q/128(100X100)	12KV	100X100	250	DOWE
	TG1-10Q/182(125X125)		125X125	235
	TG2-10Q/210(152X152)		152X152	260
	TG3-10Q/110X180		110X180	190
	TG3-10Q/140X200		140X200	230
	TG3-10Q/130X210		130X210	236
	TG3-24Q/175X255X218	24KV	175X255	218
	TG3-24Q/175X255X310		175X255	310
	TG3-24Q/180X180X280		180X180	280
	TG3-24Q/190X190X330		190X190	330
	TG3-35Q/260X260X395	40.5KV	260X260	395
	TG3-35Q/260X260X420		260X260	420
	TG3-35Q/260X260X450		260X260	450
	TG3-35Q/220X220X420		220X220	450
	TG3-35Q/180X180X550		180X180	550

high voltage busbar insulator bushing 12kv 10KV insulation fitting
